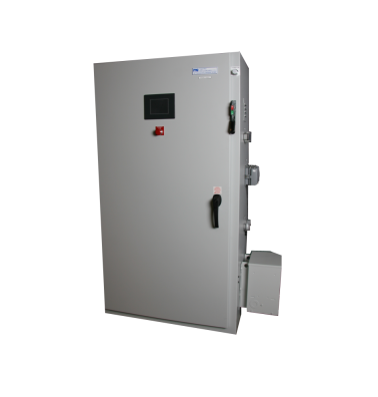

The Model 2000 Series Magnetizer is a 2000VDC, high-energy, capacitive discharge, heavy-duty, industrial magnetizer. This unit provides the latest technology in magnetizing systems.  The unit is constructed in a NEMA 12 cabinet and is equipped with many safety features including electrical door interlocks, mechanically interlocked disconnect, thermal protectors, and an emergency stop button. The system conforms to OSHA requirements, ANSI/NEC/NEMA Standards, or is designed to be CE Compliant.

• Maximum Charge Voltage: 2000VDC
• Energy Level: 10 kJ – 50 kJ (higher energy levels available upon request)
• Oil filled Capacitors – 5,000 – 25,000 µF
• Input Power Requirements: 220VAC, 30A, 50/60 Hz, Single Phase
• High Speed, Fast Recharge Operation
• Heavy Duty Construction
• Suitable for All Magnet Materials
• Single SCR Discharge Output
• Internal charge controls
• Production Line Suitable
• Modular Design
• Custom Fixtures for All Magnet Sizes and Magnet Assemblies
• Peak Current Detection

• Fixture Connectors: Cam-lock, Hardwired, or Connection Box
• Touch-screens: 6” and up using Automation Direct, Allen Bradley or Siemens
• Discharge Channels: Up to four fixtures can be connected at the same time.
• Fixture Air or Water Cooling Controls and Monitoring
• Fixture Temperature Monitoring
• Field measurement using a Model 2140 Fluxmeter and sense coil
• Field measurement using a Model 2140 Gaussmeter and probe
• Data Storage via Automation Direct touch-screen
• Ethernet IP capable
• Remote control via Hardwire or Ethernet
• Ethernet Programming Port
• Fast Charge Option
• External push button control box

*    Additional Options Available Upon Request
