착자기

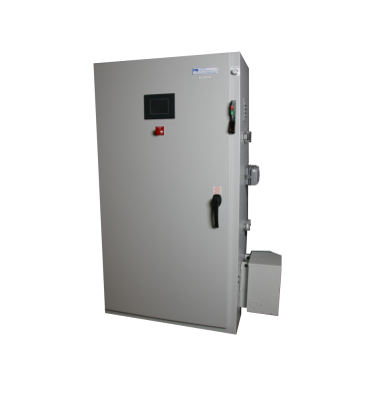

Model : 900착자기 Magnetizer
* 착자기
제품 설명
The Model 900 Series Magnetizer is a high energy, industrial-grade, capacitive discharge magnetizer with a maximum operating voltage of 825VDC. This unit provides the latest technology in magnetizing systems. The unit is constructed in a NEMA 12 cabinet and is equipped with many safety features including electrical door interlocks, mechanically interlocked disconnect, thermal protectors and emergency stop. This system conforms to OSHA requirements, ANSI/NEC/NEMA Standards, or is designed to be CE Compliant.
제품 사양
Model /Specs | Energy (J) | Capacitance (µF) | Charge Time (s) |
900-2 | 6,000 | 15,000 | 1.5~ 4.2 |
900-4 | 12,000 | 30,000 | 2.0~ 8.0 |
900-6 | 18,000 | 45,000 | 3.0~ 12.0 |
900-8 | 24,000 | 60,000 | 4.5~ 16.5 |
Max Voltage | 825V DC | ||
Output Current | 20,000Amps | ||
Power Input | 220VAC 20A 50/60Hz / 380VAC 18A 50/60Hz | ||
Size | 101 x 53 x 182cm | ||
Weight | 385kg | ||
제품 특징
- Maximum Charge Voltage: 825VDC
- Energy Level: 6 kJ – 24 kJ (higher energy levels available upon request)
- Electrolytic Capacitors – 15,000 – 60,000 µF
- Input Power Requirements: 220VAC, 30A, 50/60 Hz, Single Phase
- High Speed, Fast Recharge Operation
- Heavy Duty Construction
- Suitable for All Magnet Materials
- Single SCR Discharge Output
- Internal charge controls
- Production Line Suitable
- Modular Design
- Custom Fixtures for All Magnet Sizes and Magnet Assemblies
- Peak Current Detection
옵션
- Fixture Connectors: Cam-lock, Hardwired, or Connection Box
- Touch-screens: 6” and up using Automation Direct, Allen Bradley or Siemens
- Discharge Channels: Up to four fixtures can be connected at the same time.
- Fixture Air or Water Cooling Controls and Monitoring
- Fixture Temperature Monitoring
- Field measurement using a Model 2140 Fluxmeter and sense coil
- Field measurement using a Model 2140 Gaussmeter and probe
- Data Storage via USB Thumbdrive
- Ethernet IP capable
- Remote control via Hardwire or Ethernet
- Ethernet Programming Port
- Fast Charge Option
- External push button control box
* Additional Options Available Upon Request
